Tractor
Iseki TXG23FH compact tractor (Type GVRLE4 - 4WD with front hitch).
Training Required
The tractor requires proper training before operation. Contact TBD for training.
Specifications
| Spec | Value |
|---|---|
| Make/Model | Iseki TXG23FH |
| Type | GVRLE4 (4WD, Europe) |
| Serial No | 004228 |
| Engine | E3112-B12 diesel, 1123cc, 3-cylinder |
| Engine No | 271812 |
| Power | 22.5 HP (16.5 kW) @ 2600 rpm |
| Transmission | HST (Hydrostatic), 2-speed range |
| Drive | 4WD |
| Fuel type | Diesel |
| Fuel tank | 21 litres |
| Total mass | 1300 kg max |
| Towing capacity | 1000 kg (unbraked/inertia-braked) |
| PTO (rear) | 540 rpm @ 2532 engine rpm |
| PTO (mid) | 2000 rpm @ 2476 engine rpm |
| 3-point hitch | Front and rear, Category 1, 540 kg lift |
| Location | TBD |
See full operation manual (PDF) for complete specifications.

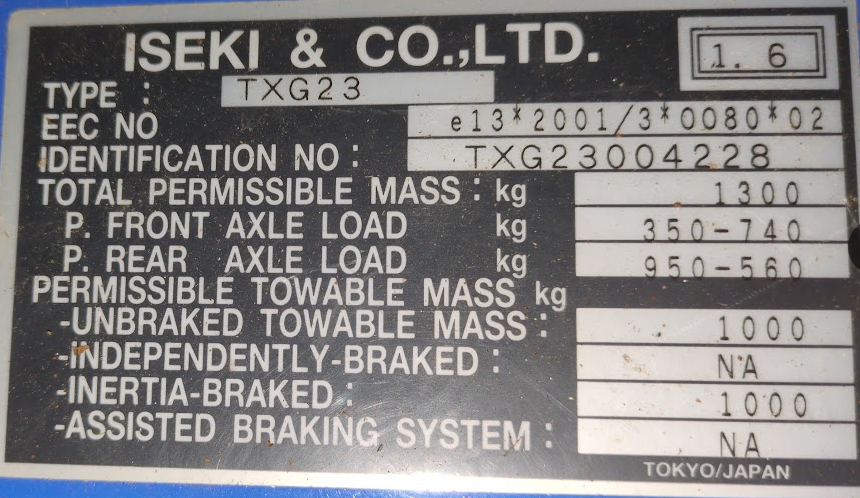

Identification Plates
Required PPE
- Steel-capped boots
- Hearing protection (if enclosed cab not available)
- High-vis vest (when working near roads)
Pre-Operation Checks
- Walk around inspection - check for leaks, damage, obstructions
- Check fuel level
- Check engine oil level
- Check hydraulic fluid level
- Check tyre pressure and condition
- Ensure all guards and safety shields are in place
- Adjust seat and mirrors
Starting Procedure
- Sit in the operator’s seat (seat safety switch must be activated)
- Ensure PTO is disengaged (PTO lever in OFF position)
- Ensure HST pedal is in neutral position
- Ensure range lever is in neutral (N)
- Apply parking brake

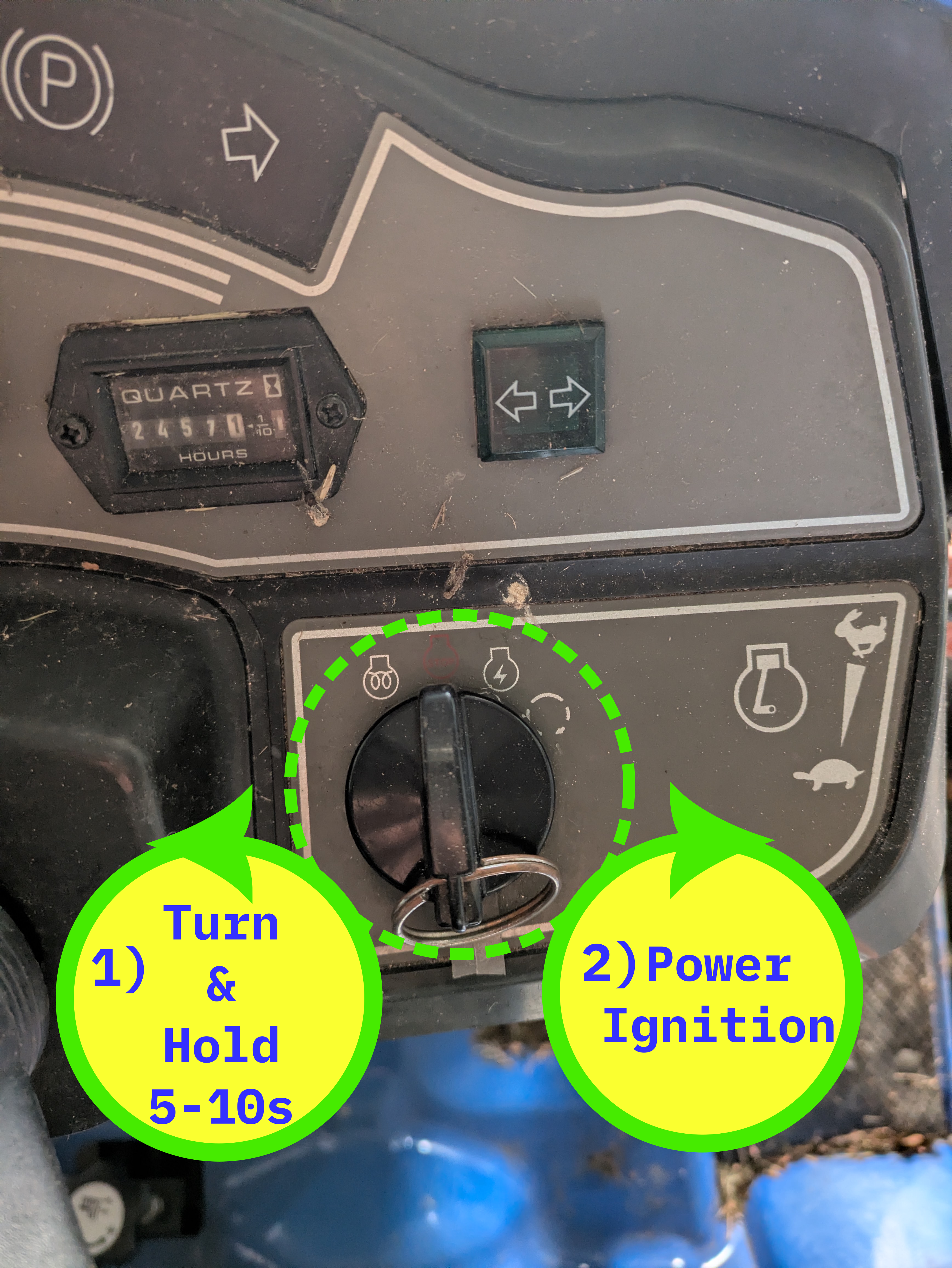

- Turn key to ON position - wait for glow plug indicator (cold starts) - see photo
- Turn key to START position - see photo
- Release key when engine starts
- Allow to warm up 2-3 minutes before heavy work
Safety Interlocks
The tractor will not start unless: seat is occupied, PTO is off, and transmission is in neutral. If the engine won’t crank, check these first.
Operating Basics
Controls

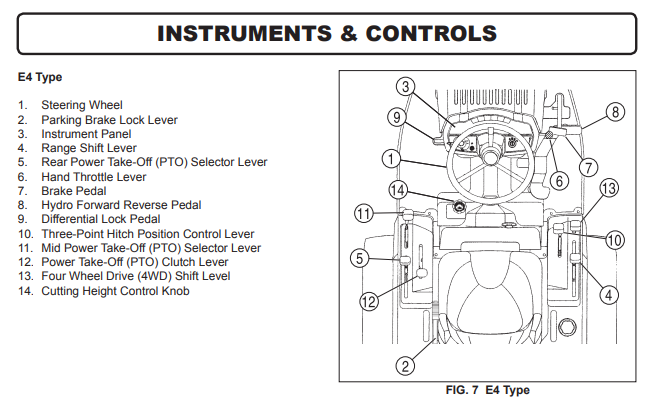

Key controls (numbers refer to diagram below):
- (2) Parking brake lock lever - Locks parking brake

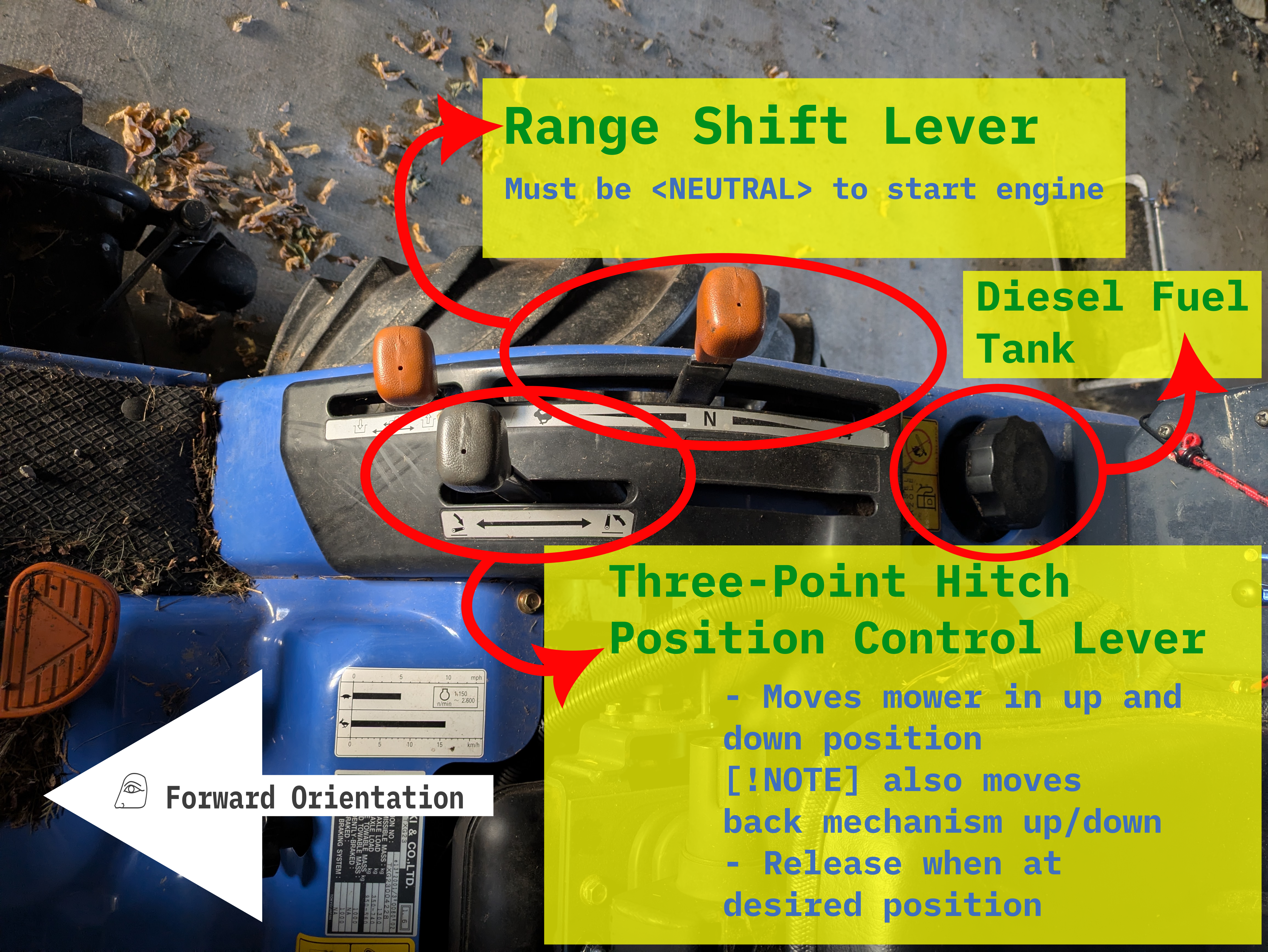

- (4) Range shift lever - High (H), Low (L), or Neutral (N) - see photo
- (5) Rear PTO selector lever - Engages rear PTO (540 rpm) - see photo
- (6) Hand throttle lever - Engine speed control
- (7) Brake pedal - Service brakes
- (8) HST pedal - Forward/reverse speed control (hydro forward/reverse)
- (9) Differential lock pedal - Locks rear wheels together (for traction)
- (10) 3-point hitch position lever - Raise/lower rear implements - see photo
- (11) Mid PTO selector lever - Engages mid PTO (2000 rpm) - see photo
- (12) PTO clutch lever - PTO on/off - see photo
- (13) 4WD shift lever - Engages front wheel drive
- (14) Cutting height control knob - Adjusts mid-mount mower height
See operation manual for full control layout.
Driving
- Always look behind before reversing
- Use low gear on slopes
- Never turn sharply at speed
- Keep loader/implements low when travelling
Slopes and Hills
Rollover Risk
Tractors can roll over on slopes. Always drive up/down slopes, never across. Reduce speed on uneven ground.
- Maximum safe slope angle: 15° (avoid steeper slopes)
- Always face uphill when parking
- Use low range and engine braking when descending
- Engage 4WD on slopes for better traction
Attachments
See Tractor Attachments for detailed guides on each implement.
| Attachment | Purpose |
|---|---|
| Mower | Cutting grass and paddock maintenance |
| Collector | Collecting leaves, clippings, debris |
Attaching Implements
See the attachments guide for the full procedure. Key points:
- Park on level ground, engine off, key removed
- Lower 3-point hitch fully
- Connect lower arms first, then top link
- Connect PTO shaft (ensure it clicks in)
- Connect hydraulics if needed
- Raise and check security before starting
Shutdown Procedure
- Lower all implements to the ground
- Disengage PTO
- Set parking brake
- Allow engine to idle for 1-2 minutes
- Turn off ignition
- Remove key
Refuelling
- Fuel type: Diesel only
- Tank capacity: 21 litres
- Fuel storage location: TBD
- Never refuel while engine is running or hot
Maintenance
Fluid Capacities
| Fluid | Capacity | Type |
|---|---|---|
| Engine oil | 2.6 L | API CD or higher, SAE 10W-30 |
| Transmission/hydraulic | 11 L | UTF (Universal Tractor Fluid) |
| Coolant | 4.6 L | 50/50 antifreeze mix |
| Front axle | 4.0 L | SAE 80W-90 gear oil |
Service Schedule
| Interval | Tasks |
|---|---|
| Daily | Check engine oil, coolant, hydraulic fluid levels |
| 50 hours | Change engine oil and filter |
| 100 hours | Check/clean air filter, check battery |
| 200 hours | Change hydraulic/transmission fluid filter |
| 300 hours | Change transmission fluid, check valve clearance |
| 600 hours | Change front axle oil, flush coolant |
Service contact: TBD
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Won’t crank | Seat switch not activated | Sit firmly in seat |
| PTO engaged | Disengage PTO | |
| Not in neutral | Put range lever in N | |
| Battery flat | Charge or jump start | |
| Cranks but won’t start | No fuel | Check fuel level |
| Air in fuel system | Bleed fuel system | |
| Glow plugs faulty | Check/replace glow plugs | |
| Poor power | Clogged air filter | Clean or replace |
| Fuel filter blocked | Replace fuel filter | |
| Engine overheats | Low coolant | Top up coolant |
| Radiator blocked | Clean radiator fins |
Emergency Procedures
- Fire: Shut off engine, evacuate, call emergency services
- Rollover: Brace yourself, do NOT jump off - stay inside
- Stuck: Do not spin wheels excessively; get assistance
Contact
- Training requests: TBD
- Maintenance issues: TBD
- Manual: Operation Manual (PDF)
